Ring Gaskets

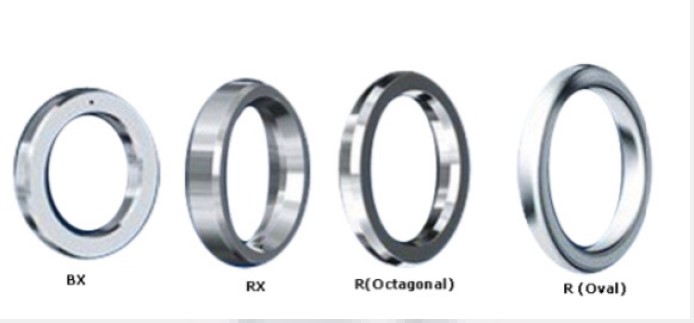

Ycapital are suitable for high pressure and high temperature applications. The Gaskets are available in R, RX, BX styles and in oval/octagonal profiles. Sara manufactures gaskets in accordance with specific tolerances on CNC machines.

Ycapital Ring Gaskets fully comply with the ASME B16.20 standard and API spec 6A requirements (where applicable). Our manufacture is authorized to monogram Ring Gaskets as per API-6A

Prime Features

  • R type (oval and octagonal) solid sections to fit standard ring flanges with trapezoidal
    grooves.
  • Types RX and BX with complex beveled edge sections for wellhead pressures above
    700 bar.
  • Combination Gaskets – Used where two flanges of different sizes are to be joined
    together.
  • Split Gaskets Used where an API flange is to be joined with a low pressure ANSI Flange
  • where a spiral wound gasket is used.
  • Special metal gaskets made to customer specifications

Materials

  • Standard: Soft iron, low carbon steel, alloy steels F5 and 410, stainless steels 304, 304L.
  • 316,316L. 321 and 347.
  • Non-standard: high nickel alloys, super alloy steels, and other stainless grades.
  • Rubber coated ring gaskets soft iron metal ring joint gaskets are coated with nitrile rubber
  • for testing wellhead assemblies and valves, Rings can be reused and do not damage
  • flange grooves.
